HSS Form S
Per strutture in acciaio

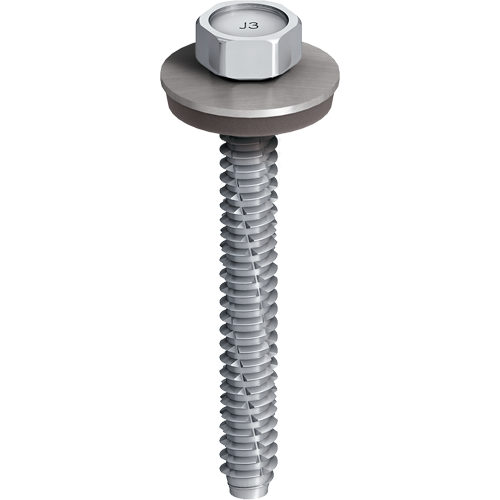

EJOT® JZ3-8,0
Caratteristiche
-
Applicazioni
- Fissaggio di lamiere grecate in acciaio su sottostrutture in acciaio nel caso di elevati carichi statici
- Fissaggio di lamiere grecate in acciaio e in alluminio su sottostrutture in alluminio
-
Caratteristiche
- Acciaio inox A2
- Rondella di tenuta in acciaio inox
- Rondella di tenuta premontata con guarnizione in EPDM
-
Dati tecnici
- Azionamento: Chiave esagonale SW13
- Numero giri: max. 400 1/min
Filtro
Filtri selezionati
| Descrizione articolo | Codice articolo | Diametro filetto mm | Ø Rondella di tenuta mm | Materiale | Unità d´imballo |
|---|---|---|---|---|---|
| JZ3-8x25-E22 | 3131253311 | 8.0 | 22 | Acciao Inox A2 | 250 |
Dati tecnici
|
|||||
| JZ3-8x38-E22 | 3131453311 | 8.0 | 22 | Acciao Inox A2 | 250 |
Dati tecnici
|
|||||
| JZ3-8x64-E22 | 3131853311 | 8.0 | 22 | Acciao Inox A2 | 150 |
Dati tecnici
|
|||||
| JZ3-8x100-E22 | 3132253311 | 8.0 | 22 | Acciao Inox A2 | 100 |
Dati tecnici
|
|||||
| JZ3-8x125-E22 | 3132453311 | 8.0 | 22 | Acciao Inox A2 | 100 |
Dati tecnici
|
|||||
| JZ3-8x150-E22 | 3131553311 | 8.0 | 22 | Acciao Inox A2 | 100 |
Dati tecnici
|
|||||
| JZ3-8x200-E22 | 3132853311 | 8.0 | 22 | Acciao Inox A2 | 50 |
Dati tecnici
|
