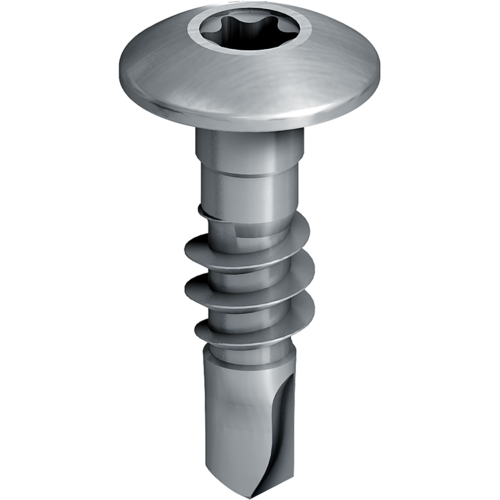

EJOT® JT4-XT

Caratteristiche

  • Applicazioni

    • Fissaggio tra il profilo di rinforzo e un pannello ALUCOBOND® secondo Z-10.3-774
  • Caratteristiche

    •  Acciao inox A2

    Vantaggi

    • Fissaggio dei pannelli forati ALICOBOND e sottostrutture in alluminio
    • La parte non filettata sottotesta permette un'ulteriore rotazione della vite dopo l'applicazione

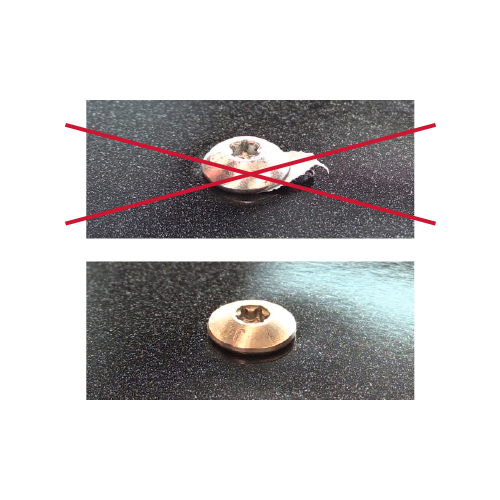

    • L'anello tagliente sottotesta taglia la pellicola del pannello
    • La pellicola protettiva può essere completamente rimossa dopo il montaggio
    • Disponibile in finitura laccata
  • Dati tecnici

    • Diametro: 6,0 mm
    • Azionamento: TORX T25
    • Capacità di foratura tI + tII: 2,0
    • Diametro della testa: 11 mm
    • Altezza della testa: 2,5 mm
    • Lunghezza parte non filettata: 6,0 mm
Descrizione articolo Codice articolo Diametro filetto mm Spessore pannello mm Materiale Unità d´imballo
JT4-XT-3/6-6.0x21 7384213300 6.0 4.0 Acciao Inox A2 500

Dati tecnici

Diametro filetto
6.0
Spessore pannello
4.0
Materiale
Acciao Inox A2
Descrizione articolo
JT4-XT-3/6-6.0x21
Unità d´imballo
500
