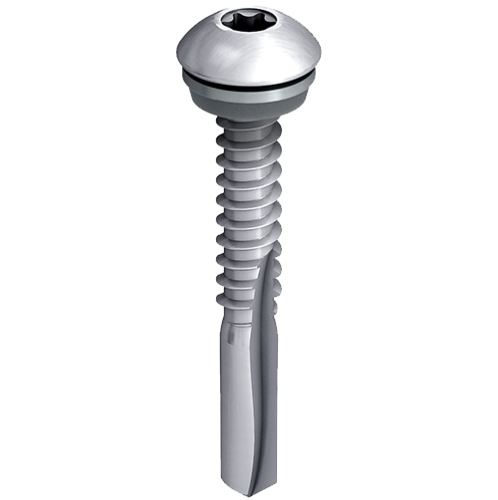

EJOT® SUPER-SAPHIR JT3-FR-12-5,5

Caratteristiche

  • Applicazioni

    • Fissaggio di lamiere grecate ondulate in acciaio su sottostrutture in acciaio spessore 4 - 10 mm
    • Fissaggio di lamiere grecate ondulate in alluminio e acciaio su sottostrutture in acciaio spessore 4  - 10 mm
    • Fissaggio di lamiere grecate ondulate in alluminio su sottostrutture in alluminio spessore 4  - 12 mm
  • Caratteristiche

    • Acciaio inox A2 con punta forante in acciaio al carbonio
    • Rondella di tenuta in acciaio inox
    • Rondella di tenuta premontata con guarnizione in EPDM
  • Dati tecnici

    • Diametro: 5,5 mm
    • Capacità di foratura tI + tII: 1,0 + 12,0 mm / 2,0 + 10,0 mm
    • Azionamento: TORX T25
    • Numero giri: max. 1300 1/min
Descrizione articolo Codice articolo Diametro filetto mm Materiale Unità d´imballo
JT3-FR-12-5,5x40-E11 3595669318 5.5 Acciao Inox A2 500

Dati tecnici

Diametro filetto
5.5
Materiale
Acciao Inox A2
Descrizione articolo
JT3-FR-12-5,5x40-E11
Unità d´imballo
500
