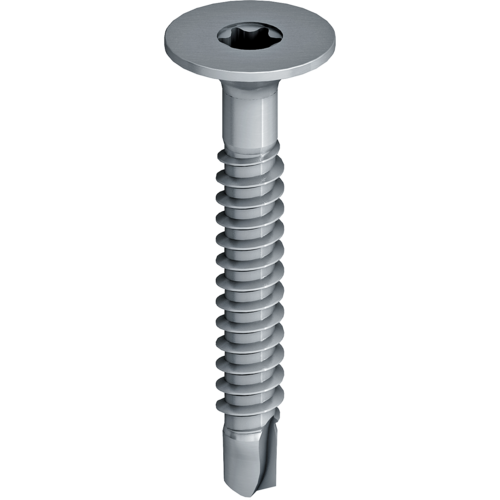

EJOT® JT4-STS-3-4,8

Caratteristiche

  • Applicazioni

    • Fissaggio di pannelli per facciata su sottostrutture in alluminio spessore ≤ 3 mm
  • Caratteristiche

    • Acciaio inox A2
    • Testa svasata con rondella di tenuta prestampata

    Vantaggi

    • Testa piatta
    • Mediante l‘utilizzo del LT-Tool si contrasta l‘oscillazione della vite in fase di avvitamento
  • Dati tecnici

    • Diametro: 4,8 mm
    • Azionamento: TORX T25
    • Capacità di foratura tI + tII: 3,0
    • Diametro della testa: 12 mm
Descrizione articolo Codice articolo Diametro filetto mm Spessore pannello mm Materiale Unità d´imballo
JT4-STS-3-4,8x35 7384094300 4.8 0.0 - 25.0 Acciao Inox A2 500

Dati tecnici

Diametro filetto
4.8
Spessore pannello
0.0 - 25.0
Materiale
Acciao Inox A2
Descrizione articolo
JT4-STS-3-4,8x35
Unità d´imballo
500
